Geocell Used In Road Construction And Soil Stabilization In Indonesia
Brief Introduction of Geocell Confinement System

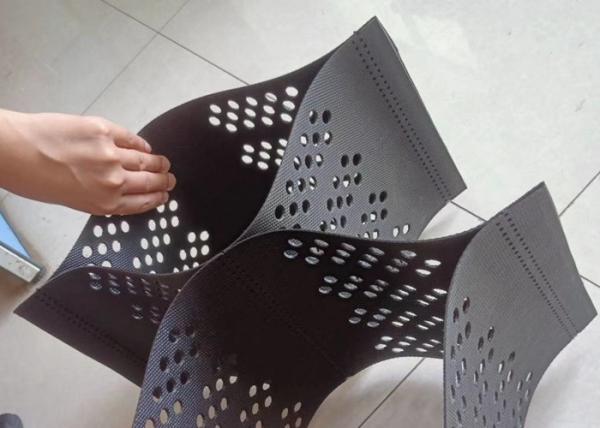

Geocell Confinement System--also known as Cellular Confinement System(CCS), it is a kind of three-dimensional network structure shaped by high-strength HDPE (high density polyethylene) sheets through ultrasonic welding of high strength. The depth of the geocells as well as the size of each cellular unit can vary as per design requirements. The surface of geocells are smooth or textured, the textured geocells increase soil-geocell wall friction. Geocells can be perforated or non-perforated. If the depth of geocell is over 10cm, the geocell can be perforated, the geocell wall is punctured to assist in immediate dissipation of developed porewater pressures due to increased stresses within the infill of the individual cells.
Geocell Confinement System Specification
- Cell depth: 50mm,100mm,150mm,200mm,250mm,300mm
- Welding distance: 330mm~1600mm
- Thickness: 1.0mm,1.2mm(smooth), 1.5mm,1.8mm(textured)
- Appearance/surface: smooth/textured
| Specification | cell height (MM) | welding spacing: (MM) | welding spacing: (MM) | weld tensile strength: (KN) |
| GS20 | 200 | 400 | 25 | 2 |
| 330 |
| GS15 | 150 | 400 | 25 | 1.5 |
| 330 |
| GS10 | 100 | 1000 | 25 | 1 |
| 470 |
| 400 |
| 330 |
| GS8 | 80 | 1000 | 25 | 0.8 |
| 470 |
| 400 |
| 330 |
| GS5 | 50 | 470 | 25 | 0.5 |
| 400 |
| 330 |
Geocell Confinement System working principle
The principle of geocell is a honeycomb three-dimensional limit system, which may significantly improve the function of individual filling data in bearing in a large scope. Its principle is three-dimensional limit. Under the action of concentrated load, the active area is compressed and sunk, and the force is decomposed to both sides and transferred to the transition area, and the moderate area is transferred to the passive area. The passive area will deform and uplift
Geocell Confinement System Characteristic
1. It has flexible expansion, foldable transportation, can be stretched into a network during construction, and can be filled with soil, gravel, concrete and other loose materials to form a structure with strong lateral restriction and large stiffness.
2. Light material, wear resistance, stable chemical properties, light and oxygen aging resistance, acid and alkali resistance
It is suitable for different soil and desert conditions.
3. High lateral limit and anti-skid, convenience, effectively enhance the bearing capacity of the subgrade, disperse the load.
4. Change the geocell height, welding torch and other geometric dimensions to meet different siege needs.
Application of Geocell Confinement System:
1. It is used to stabilize highway and railway subgrade.
2. It is used for dike and shallow river regulation under gravity.
3. Composite retaining wall for preventing landslide and loading gravity.
4. When encountering the soft foundation, the use of geocell can greatly reduce the construction labor intensity, reduce the thickness of the subgrade, the construction is fast, the performance is good, and the project cost is greatly reduced.
About Hengquan
We have experience for more than 10 years. There are two product line for geogrid and geocell. Factory work 24hours a day, we sold more than 100,000,000rmb last year(2020). Our customers are all over the world.
Factory and Equipment:
Product inventory:
Application:
Download PDF: Catalog of Hengquan - geocell.pdf
Feel free to contact.
